Axial piston pump closed circuit high pressure

H1 Pump

  • For middle and high drive power
  • nominal size 78; 115; 130; 147; 165 cm³/U
  • pressures to 480 bar
  • broad electrical controller program

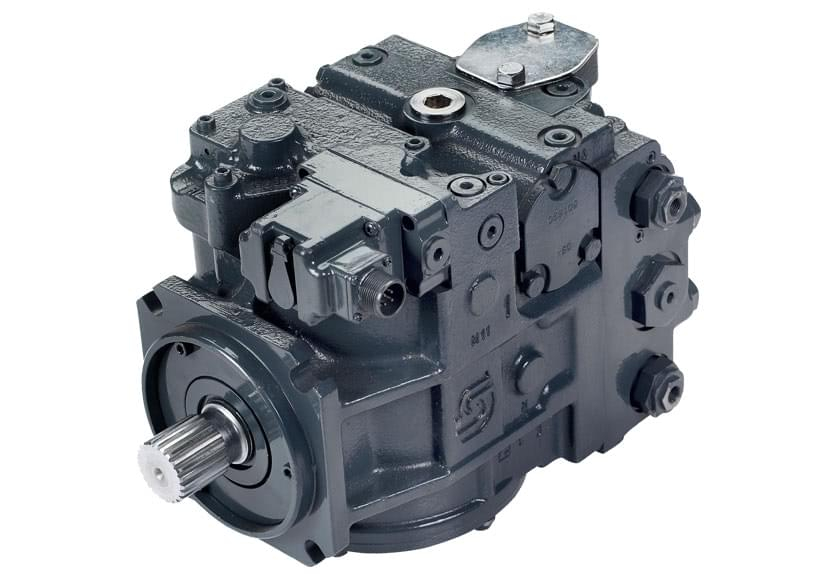

S90 Pump

  • For middle and high drive power
  • nominal size 42 to 250 cm³/U
  • pressures to 480 bar
  • manual, hydraulic, electrical controller program

Features & Benefits

  • Compact designs offering high power density.
  • Complete family of manual, electric and hydraulic displacement controls and electrical automotive controls.
  • Various motor displacements available in SAE flange, cartridge and DIN ISO flange configuration.
  • Motor ranges with fixed, 2-position and continuously variable displacement controls, including the zero degree option.

Application Opportunities

The high power transmission solutions secure performance reliability in combines, crawlers, forest machinery and rollers.
