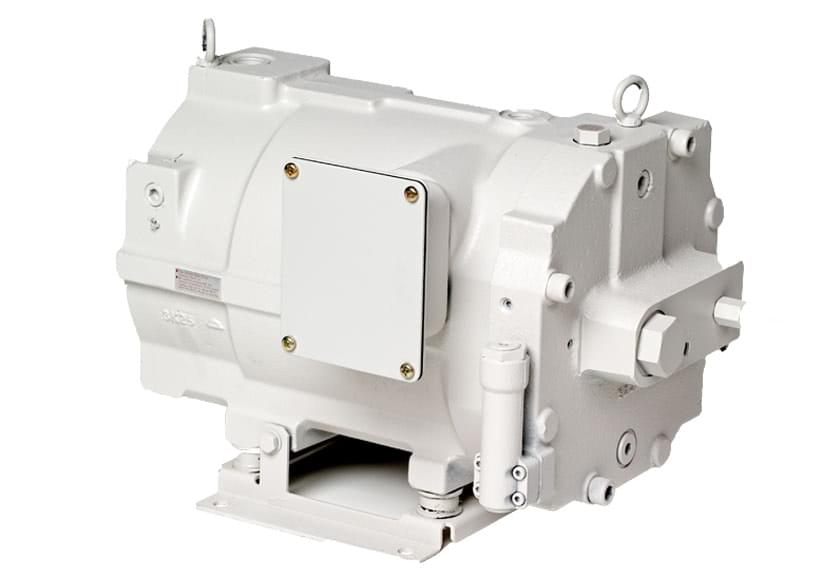

Electric motor with integrated axial piston pump J-RP

open circuit

Variable Displacement Pump Integrated in a 415 Volt - 50hz Electric Motor. Vertical mounted for easy access.

Special Characteristics.

  • Reduced installation expenditure, no coupling and mounting bracket.
  • Reduced installation space (to 40%)
  • Smaller oil tank
  • Lower weight.
  • No external leakage.
  • Lower Noise Level (-10 to -15 db(A) )
  • Reduced pulsation. to 50%
  • Lower Temperature Level.

Displacement.

  • 8cc with 0.75kw Motor.
  • 15cc with 1.5kw - 2.2kw
  • 23cc with 2.2kw - 3.7kw
  • 38cc with 3.7kw - 5.5kw

Pressure Rating.

  • From 15 bar up to 210 bar.

Special Voltage

  • RP - Also available in 200volt - 50hz AC.horizontal mounted.

PLEASE SEE TECHNICAL INFORMATION FOR CONTROLS.
