Atlanta Servoangle gearbox



HT – High Torque servo worm-gear units

 4 sizes: centre distance 50, 63, 80 and 100 mm

 8 ratios: 4,75; 6,75; 9,25; 14,5; 19,5; 29; 39 and 52:1

 Output torque: 50 % over HP- und E-Servo gearbox, from 90 to 1200 Nm

 Circumferential backlash < 1 arcmin, adjustable

 Output hollow shaft for clamp connection or with interface according analog EN ISO 9409-1-A, generously dimensioned and supported for high additional forces

 Highest rigidity

 Highest precision

ATEX design available

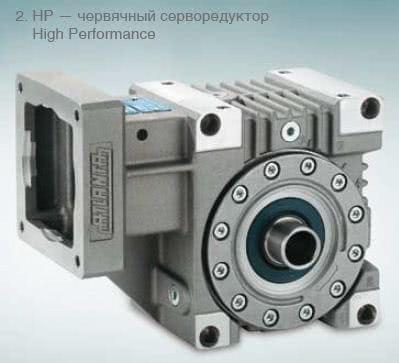

HP – High Performance servo worm-gear units

 5 sizes: centre distance 50, 63, 80, 100 and 125 mm

 8 ratios: 4,75; 6,75; 9,25; 14,5; 19,5; 29; 39 and 52:1

 Output torque: from 60 to 1500 Nm

 Circumferential backlash < 2 arcmin, adjustable

 Output hollow shaft with key connection or for clamp connection generously dimensioned and supported for additional forces

 Very high rigidity

 Very high precision

 ATEX design available

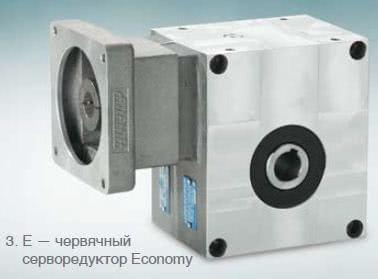

E – Economy servo worm-gear units

 5 sizes: centre distance 32, 50, 63, 80 and 100 mm

 8 ratios: 4,75; 6,75; 9,25; 14,5; 19,5; 29; 39 and 52:1

 Output torque: from 15 to 800 Nm

 Circumferential backlash < 6 arcmin

 Output hollow shaft with key connection or for clamp connection generously dimensioned and supported for additional forces

 High rigidity

 High precision

 ATEX design available

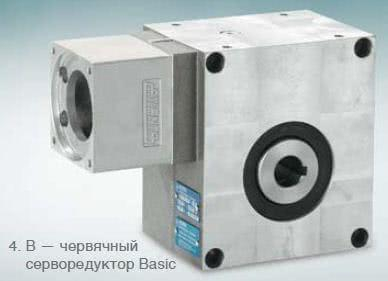

B – Basic servo worm-gear units

 4 sizes: centre distance 50, 63, 80 and 100 mm

 8 ratios: 4,75; 6,75; 9,25; 14,5; 19,5; 29; 39 and 52:1

 Output torque: 90 % of HP- and E-servo gearbox, from 50 to 720 Nm

 Circumferential backlash < 12 arcmin

 Output hollow shaft with key connection or for clamp connection sufficiently dimensioned and supported for additional forces

 Normal rigidity

 Medium precision

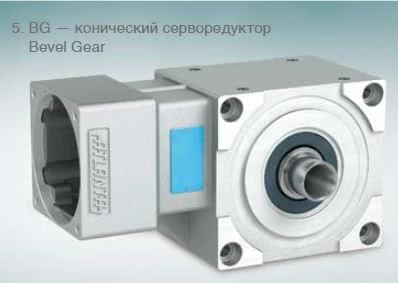

BG – Servo bevel gear units

 3 sizes: centre distance 50, 63 and 80 mm

 3 ratios: 4,75; 6,75; 9,25:1

 Driving speed till 5000 min-1 for all sizes and ratios

 Output torque: 50 % over HP- and E-servo gearbox, from 100 to 450 Nm

 Circumferential backlash < 6 arcmin

 Output hollow shaft with key connection or for clamp connection, generously dimensioned and supported for high additional forces

 Very high rigidity

 High precision
