Thomson TC16 lifting column

The TC16 lifting column is a self-supporting, lightweight unit made for domestic, office, and medical applications where quiet operation is required.  Built around a combination of double-telescoping lead screws with belt driven gearing, this unique design ensures a high load torque capacity.  It also features a very short retracted length and a low stroke-to-retracted length ratio.

  • Extruded anodized aluminium column
  • Internally restrained
  • Dynamic braking
  • Holding brake
  • Limit Switches end of stroke protection
  • Motor cable and connector
  • CE certification
  • EMC certification for medical applications
loading...

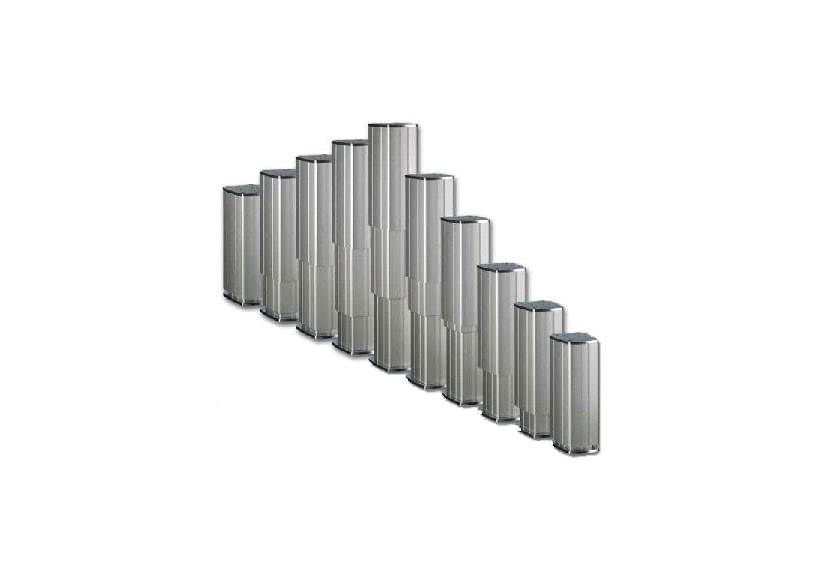

  • Thomson series tc16 lifting columns (image 840x580px)
