Warner electric clutches and brakes

Complete packaged clutch brake combinations for general purpose use or for integration with (electric) motor and load to form a complete assembly.

  • Electromagnetic or spring applied
  • Pre-assembled in our workshop
  • Standard torque range : 7,5 to 970 Nm


Individual clutches and brakes

  • Electromagnetic, hydraulic, pneumatic or mechanically operated
  • Finished bores and keyway’s machined in our workshop
  • Standard torque range : 1,7 to 81900 Nm


Spring applied electro release holding brakes

  • Pre-assembled in our workshop
  • Single and dual friction disc versions
  • Standard torque range : 5 to 25600 Nm


Compact and economic power supplies for all electric models

  • Normal excitation for standard operation and over-excitation for rapid cycling applications
  • Standard output voltages 24, 103.5 and 207 VDC

Warner electric clutches & brakes operate with DC or rectified AC voltage. The standard voltages are 24, 103.5 and 207 Volts. Warner Electric offers power supplies to convert the AC voltage and to maintain a DC switching ensuring short response times. All power supplies meet the applicable CE standards. Switching is possible on the AC or the DC side, however, switching on the AC side is 5 to 6 times slower then DC side switching. Certain electro release devices apply a bi-voltage; the high voltage is used during the actual engagement, while the low voltage is used to hold the armature in position. Typical voltage combinations are 103.5/48 or 207/103.5 VDC.

loading...

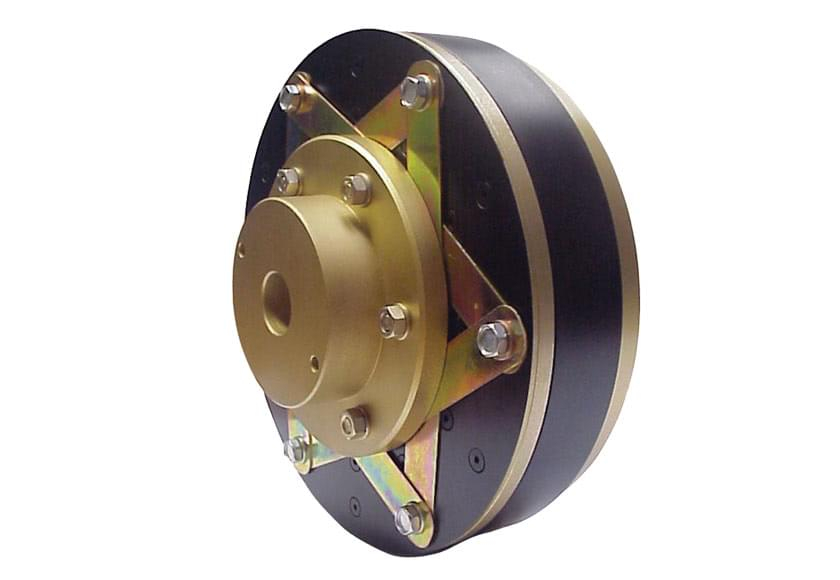

  • Warner series e210 electric clutch

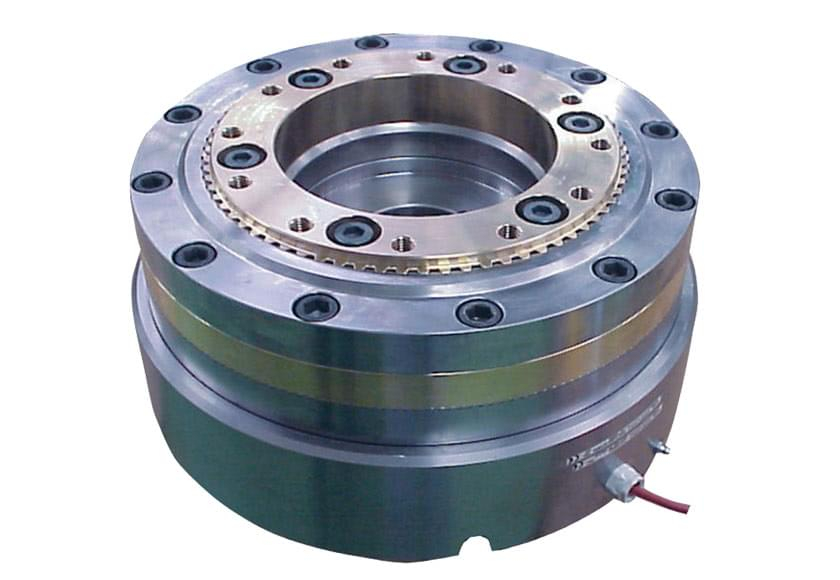

  • Warner series e320 electric clutch
  • Warner series em electric clutch & brake

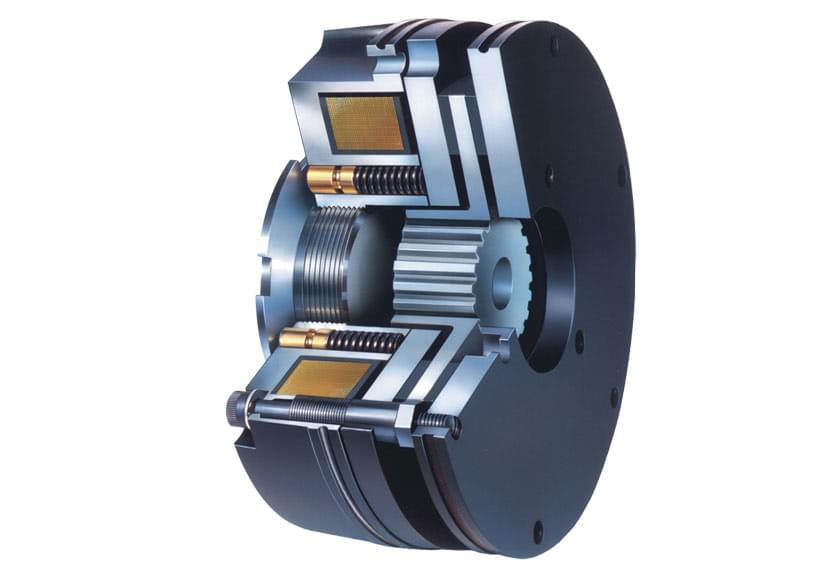

  • Warner series ERD electric brake cross-section
