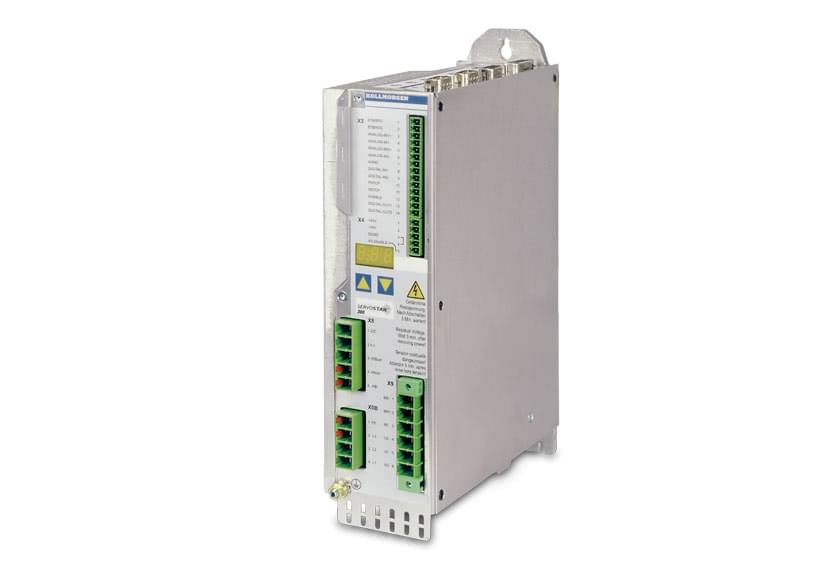

S300 Servo Drives

S300 Series digital brushless servo amplifiers are compact and easy-to-use amplifiers that offer a maximum range of flexibility to your project design. The small footprint saves space in the switchgear cabinet; the broad connectivity reduces the number of different types of amplifier.

In combination with our brushless servomotors featuring AKM, CDDR, DDR and DDL series servo motors, the S300 series offers the most advanced features and broadest connectivity available in the global marketplace today.

• CE, UL, cUL
• Operation directly from grounded 115 to 480V, 3-phase, 50-60hz AC lines
• Output current 1.5 to 10A rms/phase, continuous
• With integral AC line filter, all shield connections terminate directly to the amplifier
• DC-link circuits can be connected in parallel
• Fully programmable via RS232 interface
• Setup from a PC via Kollmorgen setup software
• 230V type suitable for 200mm switchgear cabinets
• Interface integrated for stepper controllers, master-slave operation and electronic gearing

• Integrated position controller with memory for 300 motion tasks. Intelligent positioning tasks include:
  • speed profile
  • register control
  • jolt limiting
  • daisy chained tasks
  • absolute and relative tasks
  • several types of reference traverses

• Motion Control and Soft-PLC integrated (in process)
• Encoder emulation - choose incremental (A quad B, dec./bin.) or absolute (SSI, Gray/bin.)
• Compatible with a wide range of feedback:
  • Resolver, up to 36 poles
  • ComCoder
  • Incremental or Sine Encoder with Hall sensor
  • Sine Encoder with EnDat/HIPERFACE/BISS
  • Sine Encoder without Data
  • Incremental Encoder A quad B
