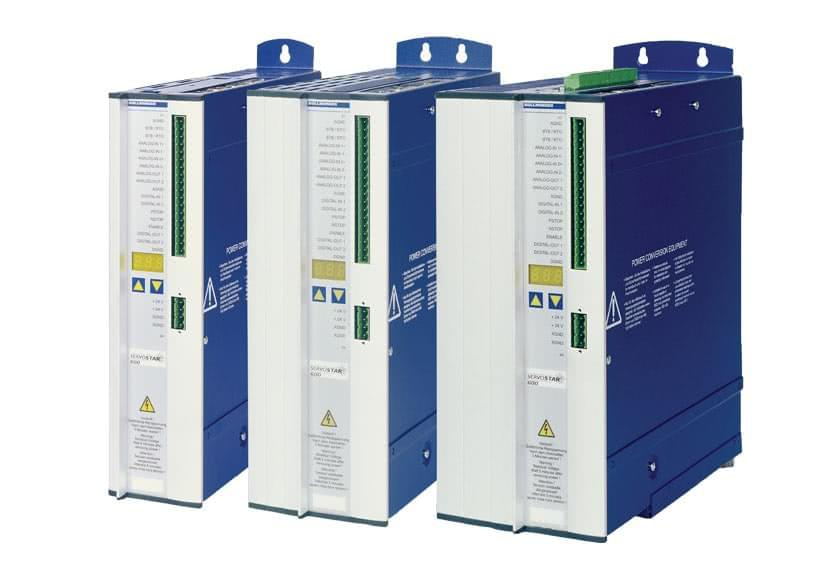

S600 Servo Drives

Designed for worldwide usability the SERVOSTAR® 600 series of servo amplifiers makes deliberate use of the advantages of digital servo technology. Highly flexible hardware and software, simple operation and wide function range even in the standard device are convincing arguments. In combination with the brushless servomotors featuring AKM, CDDR, DDR and DDL series servo motors, the S600 offers the reliable solution for your demanding single and multi-axis applications.

• CE, UL, cUL
• Operation directly from 230 to 480 VAC
• Output current 1.5 to 70A rms/phase, continuous
• Integrated Regen circuit (up to 20A)
• With integral AC line filter (up to 20A), all shield connections terminate directly to the amplifier
• Up to 20 Amps suitable for 300 mm switchgear cabinets
• Setup from a PC via Kollmorgen setup software
• 230V type suitable for 200mm switchgear cabinets
• Interface integrated for stepper controllers, master-slave operation and electronic gearing

• Integrated position controller with memory for 255 motion tasks. Intelligent positioning tasks include:
  • speed profile
  • register control
  • jolt limiting
  • daisy chained tasks
  • absolute and relative tasks
  • several types of reference traverses

• Incremental or absolute encoder emulation
• Compatible with a wide range of feedback:
  • Resolver, up to 36 poles
  • ComCoder
  • Incremental or Sine Encoder with Hall sensor
  • Sine Encoder with EnDat/HIPERFACE/BISS
  • Sine Encoder without Data
  • Incremental Encoder A quad B
