Kollmorgen MMC Smart Drive

The Digital MMC is a high performance, full-featured multi-axis motion controller. Available in 32 and 64 axis versions, the stand-alone Digital MMC communicates to servo amplifiers using a high-speed Ethernet-based digital motion control network. Real-time information from the drive is available to the application program via the digital link.

G&L Motion Control's MMC Smart Drive servo amplifiers provide 0.5kW to 65kW continuous output power in a compact, easy-to-apply package. Available in both 230 and 460VAC systems, MMC Smart Drives operate over a wide line voltage range. Application of MMC Smart Drives is simple. The integral power supply and plug-and-play cable sets simplify installation. Configuration, tuning, and maintenance are intuitive using PiCPro software with features including basic and expert parameter views, a software oscilloscope and auto-tune.

Features

  • Wide output range from 1.8 to 108A rms/phase, continuous
  • Separate control power and line power inputs maintain control power while line voltage is off, for diagnostics and feedback tracking
  • Wide line voltage range: 100 to 240VAC 1ph. input (230 volt amplifier) or 200 to 480VAC 3 ph. input (460 volt amplifier)
  • Available on-board Digital MMC controller controls up to 16 axes
  • Compatible with incremental encoder, resolver, sine encoder, EnDat 2.1 sine encoder, BiSS sine encoder, and Comcoder feedback
  • Setup from a PC via PiCPro software
  • Windows-based PiCPro software provides simple troubleshooting and diagnostic tools
  • All setup and tuning parameters are saved in non-volatile memory on the drive and may also be saved to dis
  • Velocity loop bandwidth up to 400 Hz
  • Advanced speed control algorithms for superior control
  • CE marked; UL and cUL listed
  • The same features, cabling and performance available in both the 230 volt and 460 volt drive families
loading...

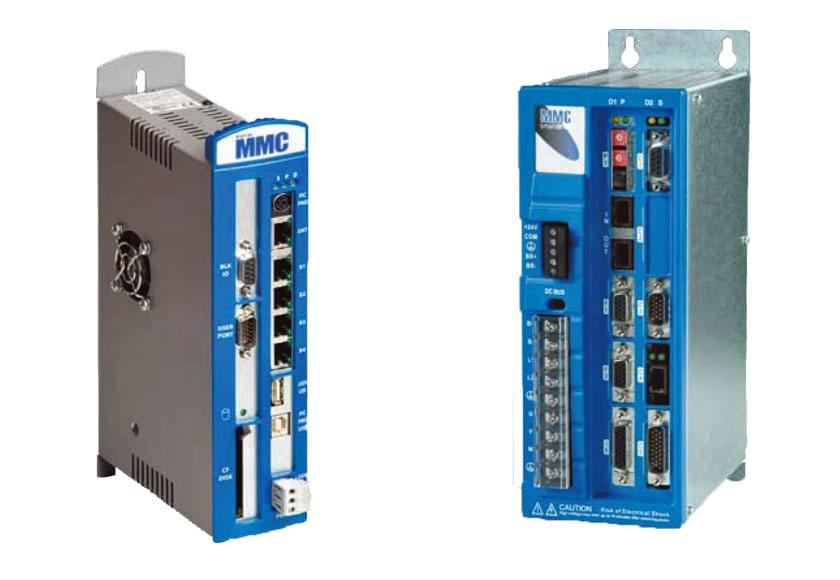

  • Kollmorgen digital MMC Smart Drive multi-axis servo drive

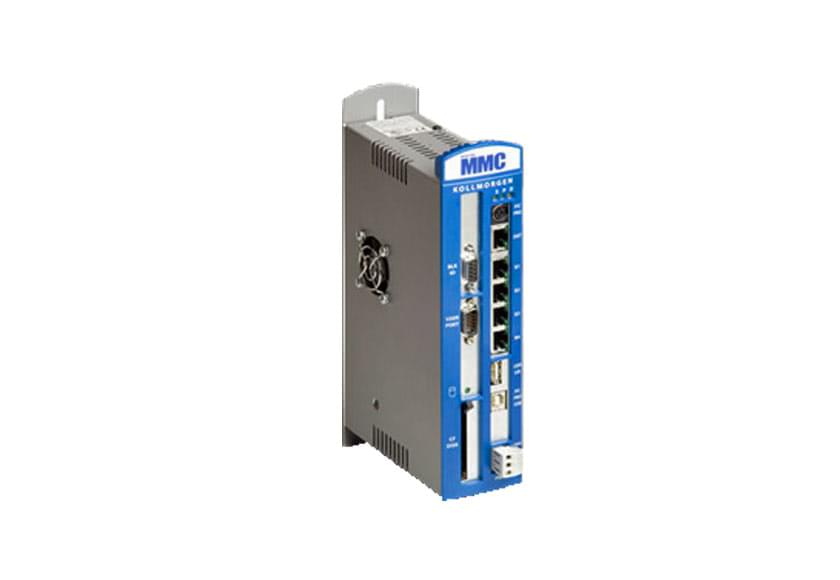

  • Kollmorgen digital MMC multi-axis servo drive
  • Kollmorgen digital MMC Smart Drive multi-axis servo drive
