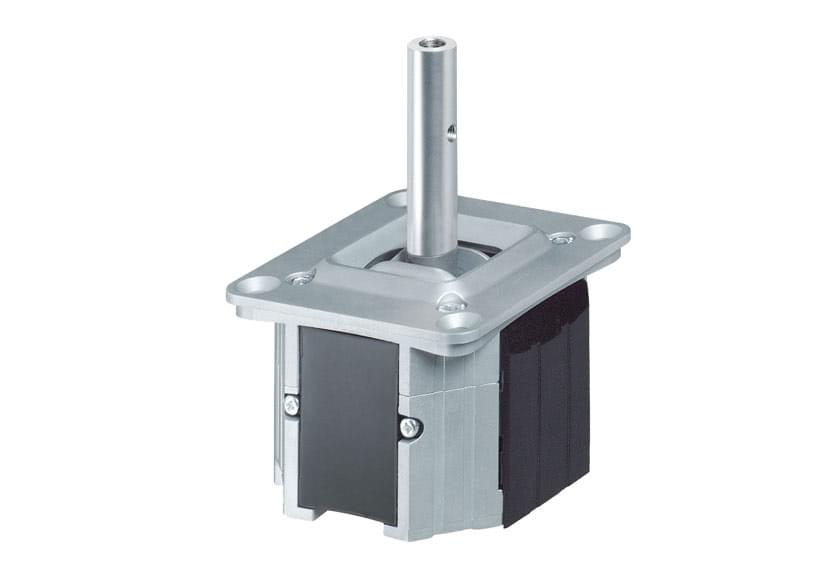

Joystick – compact design

The angular operating range is ±25°. The operating principle is non-contacting:

  • analogue: rotating magnetic field over hall-sensor
  • digital: reed technique.

Short circuit-proof with analogue version (short circuit duration: unlimited). The

J6 has a 6/8/10 or 12 PIN Molex 5557 connector.

The actuating force can be adapted according to the knob. The static loading capacity (max. 150 mm from the point of rotation) is 750 N in the x and y axis, and 500 N in the z axis.

Mechanical life: 2x106 operations.
