Level indication – Standard float switches

  • four standard versions
  • switching voltage max. 48/ 230 V
  • switching current max. 0,5/ 1 A
  • switching power 10/ 50 W/VA
  • protection class IP 67
  • log nut optional
  • cable PVC, 1 m ± 30 mm, 0,25 mm2
  • mounting form vertical ± 30°
  • contact form N/O, N/C, C/O
  • available materials PVC, PP, PA
  • temperature range -25…+100°C (PVC -10…+65°C)
loading...

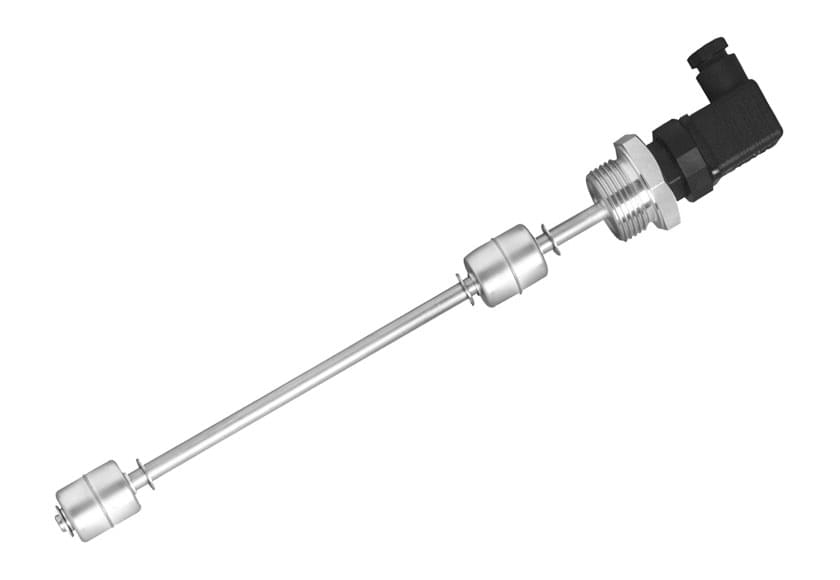

  • standard float switches 840x580
