Regulator standard white series R1000/R2000/R3000/R4000/R6000/R8000-W

  • Port size 1/8”, 1/4”, 3/8”, 1/2", 3/4", 1” (Rc, NPT or G threads)
  • Flow up to 14’000 Nl/min
  • Working pressure 0.5 to 8.5 bar (option 0.5 to 3.5 bar)

Functional features

  • Compact module
  • Light weight
  • Embedded pressure gauge for saving space
  • Mechanism to prevent oil dripping during primary pressure drop
  • Corrosion resistant
  • Gauge plug

Operative features

  • Adjust pressure without tools
  • Easily installed on panels
  • Oil drip adjustment knob with look
  • One-touch integrated attachment
loading...

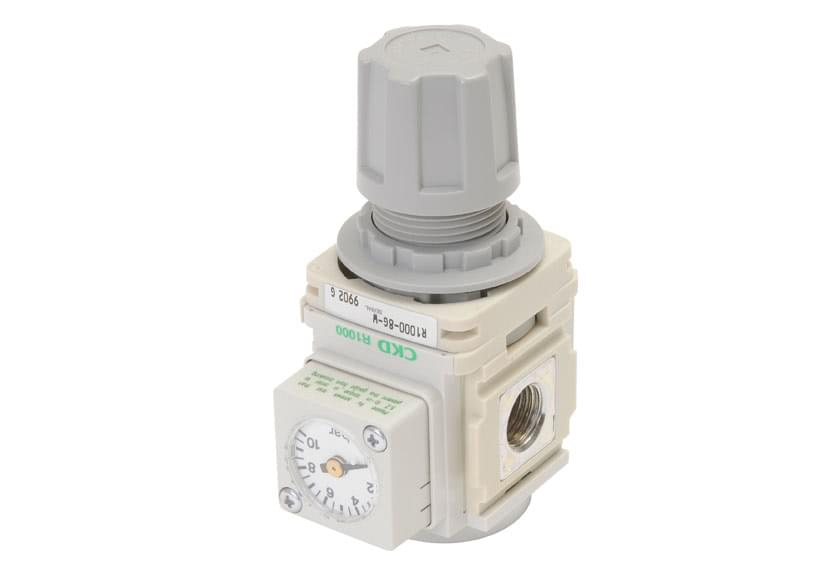

  • CKD series R standard white regulator
