CKD guided cylinders - LCM series

Highly compact, accurate, and rigid LCM series linear slide (φ4.5/ φ6/ φ8).

  • Ideal for highly accurate positioning
  • Highly accurate 0.005mm sliding parallelism and 0.3mm installation parallelism are ensured, making this actuator ideal for positioning.
  • Ultimate pursuit of downsizing

The cylinder, linear guide, and slide table have been integrated into a highly compact unit.

loading...

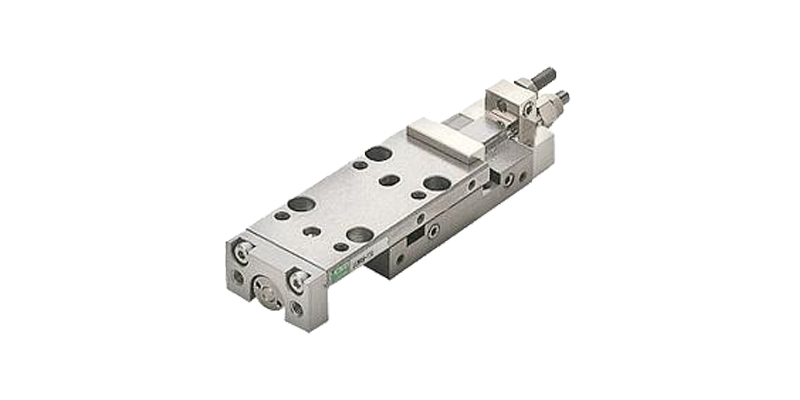

  • CKD series LCM guided cylinder
