Table type rotary actuator series GRC

This GRC Series table rotary actuator enables direct installation of high loads and realizes high positioning accuracy using bearing guides.

Excellent design freedom

  • Introducing the industry's smallest torques; GRC-5 - 0.5 Nm
  • Six new torques are now available: 5, 10, 20, 30, 50 and 80
  • Select the standard or high precision type with the same dimensions
  • Available with either 90 specifications or 180 specifications -

Easy installation

  • Piping port direction is selected from three sides
  • Piping and wiring are simplified with a large hollow hole
  • Socket and spigot for positioning are prepared on the table (four positions) and below the main component (one position)

Outstanding operation

  • 1.5 sec/90 low-speed operation
loading...

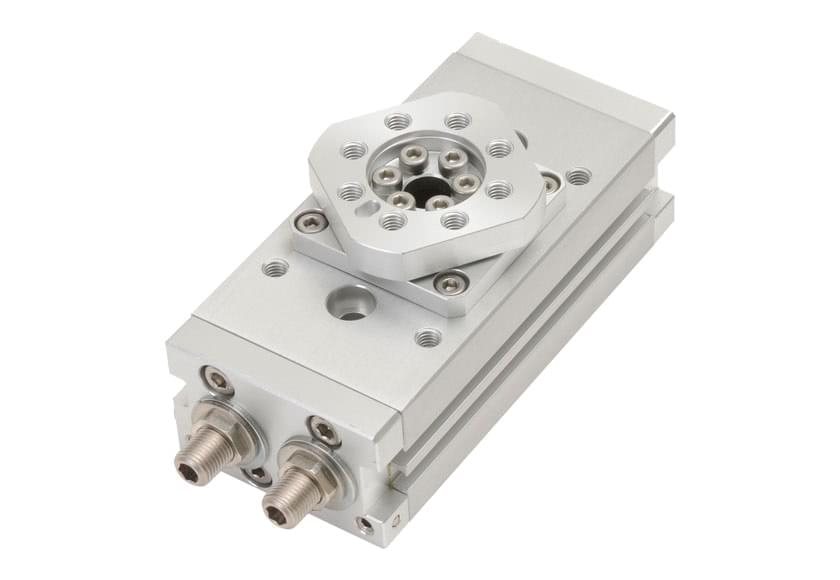

  • CKD series GRC rotary actuator
